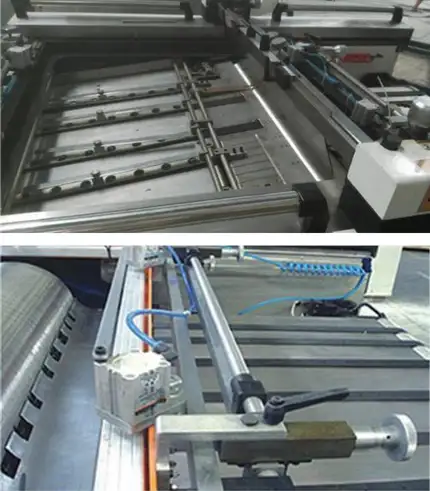

Automatic Genuine Industrial Screen Printing Machine
Automatic Industrial Screen Printing refers to the use of machine-controlled equipment to apply ink onto various products continuously and efficiently. It is widely used on cigarette and wine packing, sheet paper, ceramics decals paper, heat transfer paper, plastic bases, etc.
Description
Main Features:Â
- This automatic industrial screen printing machine is controlled by PLC, which is very easy and has a high degree of automatism.
- This machine can be used with a UV dryer, UV & IR dryer to form the full automatic screen printing line.
- It’s broadly used in large-scale production environments.
- The automatic screen printing process can quickly achieve high-quality, consistent prints, making it a deal for large-scale production runs.
- The technology used in automatic industrial screen printing continues to evolve, with an advance in automation, materials, and printing techniques leading to efficiency, speed, and quality improvements.
Parameters:
| Model | TX-800SP | TX-1020SP | TX-1050SP |
|---|---|---|---|
| Max.printing size: | 800*600mm | 1020*720mm | 1050*750mm |
| Min.paper size : | 350*270mm | 560*350mm | 560*350mm |
| Max.paper size : | 800*590mm | 1020*710mm | 1050*720mm |
| Border: | < 10mm | < 10mm | < 10mm |
| Paper thickness : | 108-400g/m2 | 108-400g/m2 | 120-400g/m2 |
| Screen frame size: | 1070x1070mm | 1280x1140mm | 1300*1170mm |
| Max.printing speed: | 1000-3300pcs/h | 1000-3000pcs/h | 1000-3000pcs/h |
| Weight : | 4000kg | 5000kg | 5200kg |
| Power (kw) : | 3P4N 50/60HZ 380V 9kw | 3P4N 50/60HZ 380V 15kw | 3P4N 50/60HZ 380V 16.5kw |
| Dimension (LXWXH) | 4350*2580*1680mm | 4650*2800*1680mm | 4650*2800*1680mm |
